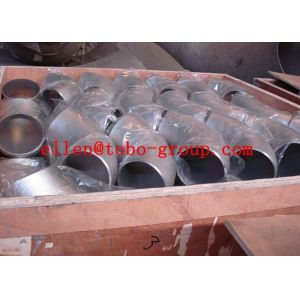

Stainless steel elbow A403-WP304L A403-WP316L A403-WP316L WP321, 321H. WP347.A815 UNSS3180

Ask Lasest Price
Brand Name :	TOBO
Certification :	ISO, GOS, PED
Model Number :	Stainless steel elbow
Price :	1USD
Delivery Time :	10-100 days depending on quantity
Payment Terms :	T/T or Western Union or LC
Supply Ability :	3,0000pcs per month

Add to Cart

Product Details
Company Profile

Stainless steel elbow A403-WP304L A403-WP316L A403-WP316L WP321, 321H. WP347.A815 UNSS3180

Stainless steel elbow A403-WP304L A403-WP316L A403-WP316L WP321, 321H. WP347.A815 UNSS31803

Brand Name:	TOBO
Model Number:	A403-WP304 A403-WP304L A403-WP316. A403-WP316L A420-WPL6,316L, 304L, 321, 321H.
Certification:	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin:	China

Product Name	Stainless steel elbow	Product Type	Butt weld elbow
Size	1-48 inch	DN15-DN1200	15-1200
Material Grrade	WP304	Type	Seamless or weld
Standard	ASME B16.9	Standard	DIN,EN,ASTM,BS,JIS,GB,etc.
Application	Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc

Minimum Order Quantity:	1pcs
Price:	Depending on quantity
Payment Terms:	T/T or Western Union or LC
Supply Ability:	3,0000pcs per month
Delivery Time:	10-100 days depending on quantity
Packaging Details:	PLY-WOODEN CASE OR PALLET

Specifications

1.Stainless steel elbow
2.sch5s-schxxs
3.ISO9001,ISO9000
4.Market:America,Africa,Middle East,Southeast of Asia


90^o LONG RADIUS ELBOWS		45^o

Unit : inch Nominal Pipe Size	Outside Dia. (OD)	Wall Thickness (T)				90^{o L/R Elbow Center To End A}	45^{o L/R Elbow Center To End B}	90^{o S/R Elbow Center To End A}	Tees Center To Ends C.M	Cap Length E
Unit : inch Nominal Pipe Size	Outside Dia. (OD)	Sch.5S	Sch.10S	Sch.40S	Sch.80S	90^{o L/R Elbow Center To End A}	45^{o L/R Elbow Center To End B}	90^{o S/R Elbow Center To End A}	Tees Center To Ends C.M	Cap Length E
1/2	0.840	0.065	0.083	0.109	0.147	1.50	0.625		1.00	1.00
3/4	1.050	0.065	0.083	0.113	0.154	1.12	0.438		1.13	1.00
1	1.315	0.065	0.109	0.133	0.179	1.50	0.875	1.00	1.50	1.50
1-1/4	1.660	0.065	0.109	0.140	0.191	1.88	1.00	1.25	1.88	1.50
1-1/2	1.900	0.065	0.109	0.145	0.200	2.25	1.12	1.50	2.25	1.50
2	2.375	0.065	0.109	0.154	0.218	3.00	1.38	2.00	2.50	1.50
2-1/2	2.875	0.083	0.120	0.203	0.276	3.75	1.75	2.50	3.00	2.00
3	3.500	0.083	0.120	0.216	0.300	4.50	2.00	3.00	3.38	2.50
4	4.500	0.083	0.120	0.237	0.337	6.00	2.50	4.00	4.13	3.00
5	5.563	0.109	0.134	0.258	0.375	7.50	3.12	5.00	4.88	3.50
6	6.625	0.109	0.134	0.280	0.432	9.00	3.75	6.00	5.63	4.00
8	8.625	0.109	0.148	0.322	0.500	12.00	5.00	8.00	7.00	5.00
10	10.750	0.134	0.165	0.375	0.500	15.00	6.25	10.00	8.50	6.00
12	12.750	0.156	0.180	0.375	0.500	18.00	7.50	12.00	10.00	7.00
14	14.000	0.156	0.250	0.375	0.500	21.00	8.75	14.00	11.00	7.50
16	16.000	0.165	0.250	0.375	0.500	24.00	10.00	16.00	12.00	8.00
18	18.000	0.165	0.250	0.375	0.500	27.00	11.25	18.00	13.50	9.00
20	20.000	0.188	0.250	0.375	0.500	30.00	12.50	20.00	15.00	10.00
24	24.000	0.218	0.250	0.375	0.500	36.00	13.50	24.00	17.00	12.00

Unit : inch Nominal Pipe Size	Outside Dia. (OD)	Wall Thickness (T)				90o L/R Elbow Center To End A	45o L/R Elbow Center To End B	90o S/R Elbow Center To End A
Unit : inch Nominal Pipe Size	Outside Dia. (OD)	Sch.5S	Sch.10S	Sch.40S	Sch.80S	90o L/R Elbow Center To End A	45o L/R Elbow Center To End B	90o S/R Elbow Center To End A
1/2	0.840	0.065	0.083	0.109	0.147	1.50	0.625
3/4	1.050	0.065	0.083	0.113	0.154	1.12	0.438
1	1.315	0.065	0.109	0.133	0.179	1.50	0.875	1.00
1-1/4	1.660	0.065	0.109	0.140	0.191	1.88	1.00	1.25
1-1/2	1.900	0.065	0.109	0.145	0.200	2.25	1.12	1.50
2	2.375	0.065	0.109	0.154	0.218	3.00	1.38	2.00
2-1/2	2.875	0.083	0.120	0.203	0.276	3.75	1.75	2.50
3	3.500	0.083	0.120	0.216	0.300	4.50	2.00	3.00
4	4.500	0.083	0.120	0.237	0.337	6.00	2.50	4.00
5	5.563	0.109	0.134	0.258	0.375	7.50	3.12	5.00
6	6.625	0.109	0.134	0.280	0.432	9.00	3.75	6.00
8	8.625	0.109	0.148	0.322	0.500	12.00	5.00	8.00
10	10.750	0.134	0.165	0.375	0.500	15.00	6.25	10.00
12	12.750	0.156	0.180	0.375	0.500	18.00	7.50	12.00
14	14.000	0.156	0.250	0.375	0.500	21.00	8.75	14.00
16	16.000	0.165	0.250	0.375	0.500	24.00	10.00	16.00
18	18.000	0.165	0.250	0.375	0.500	27.00	11.25	18.00
20	20.000	0.188	0.250	0.375	0.500	30.00	12.50	20.00
24	24.000	0.218	0.250	0.375	0.500	36.00	13.50	24.00
